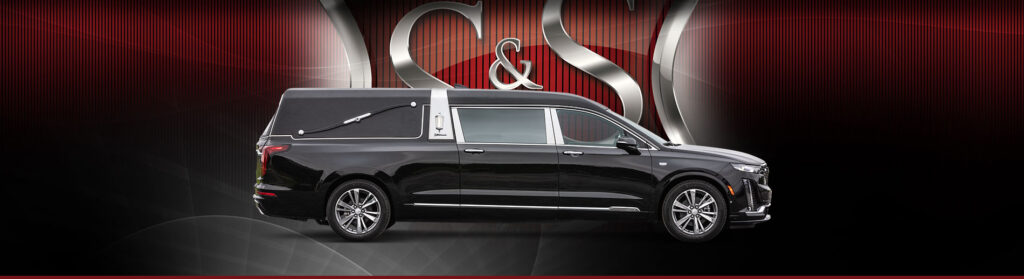

S&S Cadillac XT6 Victoria

• Assembled on the Main Frame Fixture: Linear Rails & Framing Racks for precision alignment
• C Pillars: 12-gauge steel provide support for the rear side doors
• Chassis Extension: 10” Extension after the rear wheels
• Chassis Extension: 46” Wheelbase Extension
• Coach Body: High performance vinyl-ester resin
• Floor Pan: 16-gauge steel floors vs 18 in the OEM
• Floor Supports: 1″x2″ steel tubing with 16-gauge walls for maximum support
• Hinges: 7-gauge steel for all hinge plates, 3/8” steel gusset reinforcements, and 10-gauge steel striker
• Interior Wheel Wells: Modified and reinforced for maximum casket width
• Partition: 16-gauge steel tubing and 45◦ structural supports
• Rockers: 12-gauge inner and outer rockers with internal reinforcements vs 14-gauge in OEM
• Super-Structure: 16-gauge 1 ¼” steel tubing for unsurpassed strength

Standard Functional Features

• 3rd break light mounted in rear load door
• Axalta Chroma Premier Paint System: Sealer, Base Coat and Clear Coat: 7 – 9 coats
• Back-Up Sensors
• Bumper Protector
• Casket Door Hinge – Cantilever state-of-the-art left side casket door hinge – opens 270°
• OEM Windshield and Pillars
• Drip Rails – Polished Aluminum
• Emergency Load Door Release – accessible outside the coach
• Spare Tire – Space Saver
• Gas Tank: 19-Gal, right side fill
• Extension – Double cut- 46″ wheelbase extension plus 10″ rear
• Side door – 47″ wide with a 78° opening
• Tempered Glass Partition tilted to reduce glare
• Windshield and Pillars: OEM
• 4-Year / 50,000 Mile Conversion Warranty
• Wheels, 20″ (50.8 cm) 12-Spoke alloy with Fully Polished finish
• Front-wheel drive
• Engine, 3.6L V6, DI, VVT, with Automatic Stop/Start (310 hp [231 kW] @ 6600 rpm, 271 lb-ft of torque [366 N-m] @ 5000 rpm)
• Transmission, 9-speed automatic

Standard Interior Features

• Bier Pin Plates – Front, 2
• Bier Pins – Adjustable, quick release
• Casket Guides – Protects interior wheel well from casket damage
• Church Truck Well – Closed W/ Flip Lid
• Deluxe Cloth Headliner
• Die-Cast, Chrome Plated Hardware: 12 rollers total – 2 90°
• Die-Cast, Chrome Plated Hardware: 4 skid bars
• Die-Cast, Chrome Plated Hardware: 5 bier pin plates
• Drapes – 1 – piece with swags
• Floor Extension – Pull out sill and 2 90° rollers
• Interior Sidewalls – Shadow Box & Wheel Cover Trim
• Lighted underfloor storage for spare tire and church truck
• Nameplate Brackets on Side Doors
• Partition – with Decorative Trim
• Personalization package – Customer logo on Partition & Load Door
• Phenolic Floor Covering
• Pull Handle on Load Door
• Umbrella storage
• Urn Holder – Electric

Standard Exterior Features

• Badging – S&S Victoria
• Belt Moldings – Chrome
• Flagstaff Holders-12” with 2 sets of flags
• Pillars – B+C, Stainless Steel Appliques
• Rocker Moldings – Painted Body Color
• Roof – Full Vinyl with 1/4 inch padding
• S&S Landau Bows with pointed center chrome spears and end caps
• S&S Tiffany coach lamps
• Stainless Steel vinyl top reveal molding
• Strobes – 4-way – Clear
• Roofline – with distinctive S&S Chamfer
• Side door glass with B & C Pillar Appliques

• Bumper Protector – Carpet – Full Floor
• Casket Door Hinge – Right Hand Side
• Church Truck Well – Opened
• Drapes – 3 – piece sliders – Deluxe
• Flagstaff Holders -18” with 2 sets of flags
• Floor Extend Table – Hydraulic – Full Floor
• Floor Extend Table – Manual – Full Floor
• License Plate Bracket – Install Front
• Light Bar – Mini LED with Base and Wiring
• Light Bar – Pre-Wiring only
• Name Plate Brackets – Load Door
• Paint – Full Body Repaint – Past Model Year – Standard Colors
• Paint – Full Body Repaint – Past Model Year – Tri-Coat
• Paint – GM/Ford Paint Upcharge – Special Colors
• Roof – Paint 1/2 Top
• Roof Band – Polished Stainless Steel – In the Motif Panel (wide)
• Strobes – 360° Package
• Strobes – 4-way – Purple
• Strobes – Side Mirrors
• Strobes – Windshield
• Undercoating

• Due to continuous improvement, S&S specifications are subject to change without notice or price adjustment
