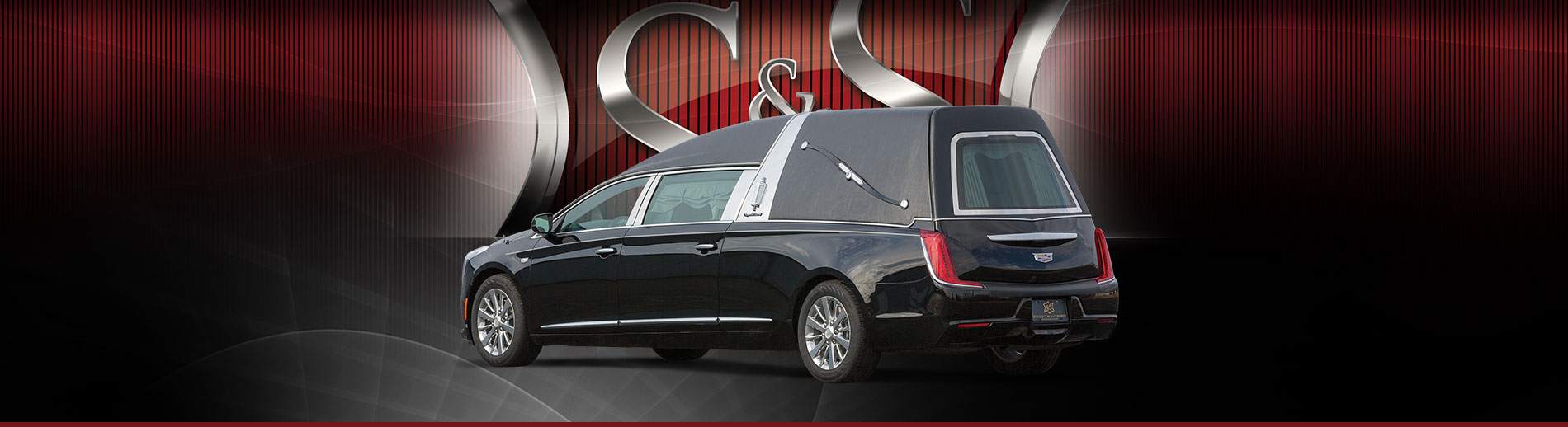

Cadillac XTS Olympian
The styling details evoke “strength and stature.” The distinctive lines of this S&S coach are tastefully combined with the sleek flow and state of the art technology of the latest Cadillac. Completing the modernization is a new, innovative load door that allows pallbearers maximum access to the casket compartment. Honoring the past…advancing to the future…
Standard 2019 XTS Olympian
- General Structural Specifications
- Assembled on the Main Frame Fixture: Linear Rails & Framing Racks for precision alignment
- C Pillars: 12-gauge steel provide support for the rear side doors
- Chassis Extension: 47″ Wheelbase Extension
- Coach Body: High performance vinyl-ester resin
- Floor Pan: 16-gauge steel floors vs 18 in the OEM
- Floor Supports: 1″x2″ steel tubing with 16-gauge walls for maximum support
- Hinges: 7-gauge steel for all hinge plates, 3/8” steel gusset reinforcements, and 10-gauge steel striker
- Interior Wheel Wells: Modified and reinforced for maximum casket width
- Partition: 16-gauge steel tubing and 45◦ structural supports
- Rockers: 12-gauge inner and outer rockers with internal reinforcements vs 14-gauge in OEM
- Super-Structure: 16-gauge 1 ¼” steel tubing for unsurpassed strength
- Standard Functional Features
- 3rd break light mounted in rear load door
- Axalta Chroma Premier Paint System: Sealer, Base Coat and Clear Coat: 7 – 9 coats
- Back-up Camera
- Bumper protector – ABS – Flush mount
- Drip Rails: polished aluminum
- Emergency Load Door Release – accessible outside the coach
- Full Size Spare Tire
- Gas Tank: 19-Gal – right side fill
- Heavy-Duty Cadillac B9Q XTS Coachbuilder Chassis
- Load Door: Cantilever state-of-the-art left side casket door hinge – opens 270°
- Side Doors: 47″ wide doors opening 78 °
- Tempered Glass Partition tilted to reduce glare
- Windshield and Pillars: OEM
- Standard Interior Features
- Biers pins – Chrome Plated, Adjustable quick release and Two stationary
- Closed Church Truck Well
- Deluxe Cloth Headliner
- Die-Cast, Chrome Plated Hardware: 12 rollers total – 2 90°
- Die-Cast, Chrome Plated Hardware: 4 skid bars
- Die-Cast, Chrome Plated Hardware: 5 bier pin plates
- Drapes – 3 – piece sliders – Deluxe
- Floor Extension – Pull out sill and 2 90° rollers
- Interior Lighting: Continuous LED lights under chrome accent piece on sidewalls and partition
- Interior Lighting: 8 LED lights in the ceiling
- Interior: Premium materials used from the headliner to the flooring – LED lighted shadow boxes with decorative bolsters and deluxe swag drapes, decorative bolsters on the partition, load door, and on the side doors, Masterpiece embroidery on the load door hinge cover, and 2-tone wheel cover trim.
- Lighted underfloor storage for spare tire and church truck
- Nameplate Brackets on Side Doors
- One-Piece Glass Partition with Customer Etching and Lexan Side Panels
- Phenolic Floor Covering
- Pull Handle on Load Door
- Umbrella storage
- Urn Holder – portable
- Standard Exterior Features
- Lower Chrome Rockers
- Lower door moldings – OEM styling
- Pin Stripe
- Roof – Full Vinyl with 1/4-inch padding
- S&S Badging
- S&S Landau Bows with pointed center chrome spears and end caps
- S&S Tiffany coach lamps
- Stainless Steel Appliques B&C Pillars
- Stainless steel rocker Covers
- Stainless Steel vinyl top reveal molding
Olympian Options
- 1/2 Vinyl Top – Painted Roof
- Backup Sensors
- Beacon Ray Wiring
- Casket Guides – Floor mounted to protect interior wheel well in casket compartment
- Flagg Staffs with 2 sets of funeral flags
- Limousine Window: Rectangular
Dimensions
| Overall length Overall height Overall width Overall extension Wheelbase Casket floor length (usable space) | 249.0″ 73.3″ 72.9″ 47.0″ 158.7″ 116.0″ |
| Loading door height Loading door width Loading door angle Loading height Width between wheelhouses Side door opening angles | 40.5″ 43.0″ 270° 29.1″ 41.0″ 78° |
